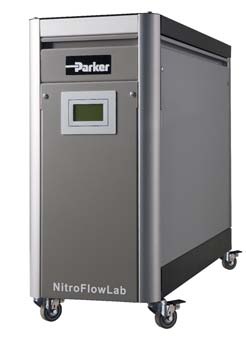

NitroFlow Lab for LC/MS

Nitrogen on Demand, up to 32 lpm

The Parker Balston NitroFlow Lab is a self contained generator that produces up to 32 lpm of pure LC/MS grade nitrogen at pressures up to 8 bar. Nitrogen is produced by utilising a combination of compressor and membrane separation technologies.

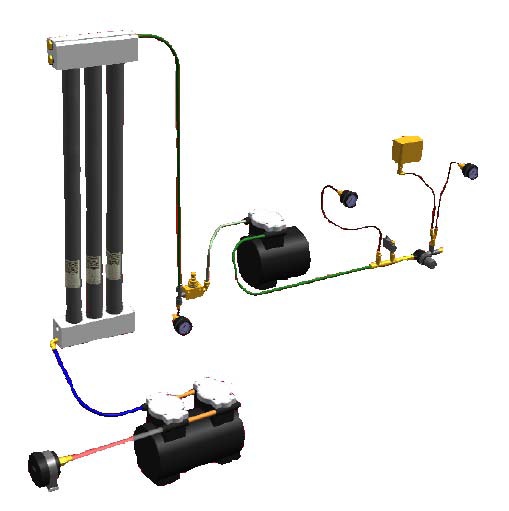

High and low pressure compressors are carefully matched to the hollow fibre membranes to ensure quiet and reliable operation. Oil free compressed air is passed through the unique proprietary hollow fibre membranes which separate the air into a concentrated nitrogen stream.

Typical applications include LC/MS, LC/MS/MS, nebuliser gases for APCI and ESI, ELSD, Turbo Vaps and chemical solvent evaporation. The NitroFlow Lab has been tried and tested by all the major LC/MS manufacturers.



Product Features:

• Complete “Plug and Play” system recommended by all major LC/MS manufacturers
• Produces a continuous supply of nitrogen for all LC/MS applications
• Phthalate-free, no organic vapours
• Eliminate dangerous nitrogen cylinders from the laboratory
• 8,000 hours compressor warranty
• Internal acoustic dampening ensures quiet operation



The unique combination of the dual compressor technology ensures that the NitroFlow® Lab has several unique technical advantages over all other existing LC/MS Nitrogen Generators.

Nitrogen is produced at low pressure and then compressed to 8 bar. This ensures minimal maintenance of the system with no compressed air filter replacements or waste condensate.

The compressor life is guaranteed under the Parker Balston warranty for 8,000 continuous running hours, the longest currently available on the market.













 Click here to request further details.



---

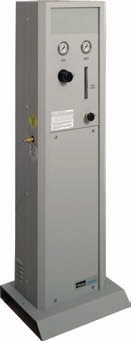

Nitrogen Generators for LC/MS

Nitrogen on Demand, up to 228 lpm

The Parker Balston membrane nitrogen generators can produce up to 228 lpm of pure LC/MS grade nitrogen at pressures up to 8 bar. Generators are complete systems engineered to transform standard compressed air into a safe regulated nitrogen supply with minimal operator attention.

Typical applications include LC/MS, LC/MS/MS, nebuliser gases for APCI and ESI, ELSD, Turbo Vaps and chemical solvent evaporation. The membrane nitrogen generators have been tried and tested by all the major LC/MS manufactures.



Product Features:

• Recomended and used by all major LC/MS manufacturers
• No electrical requirement, no noise, no moving parts
• Can supply up to 6 LC/MS from one generator
• Eliminates inconvenient nitrogen dewars from the laboratory
• Phthalate-free, no organic vapours
• Utilises Parker’s propriety membrane technology





Nitrogen is produced by utilising a combination of filtration and membrane separation technologies.
A house supply of compressed air is filtered by high efficiency coalescing filters to remove all contaminants down to 0.01 micron.

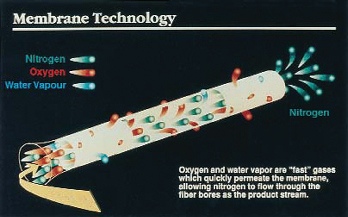

Unique proprietary hollow fibre membranes then separate the air into a concentrated nitrogen stream

Membrane technology offers some unique performance benefits for LC/MS users including phthalate-free nitrogen, silent operation, no moving parts and no electrical requirements. 10,000’s of systems are installed worldwide.

Click here to request further details.
